Industrial-grade battery energy storage for homes, large offices, factories, malls, hospitals, data centres, grid and utility. Seamless PM Surya Ghar solar integration, DG displacement, and 20-year asset longevity.
From compact home solar storage to containerized C&I microgrids, powered by proprietary JT-SYNC power electronics.

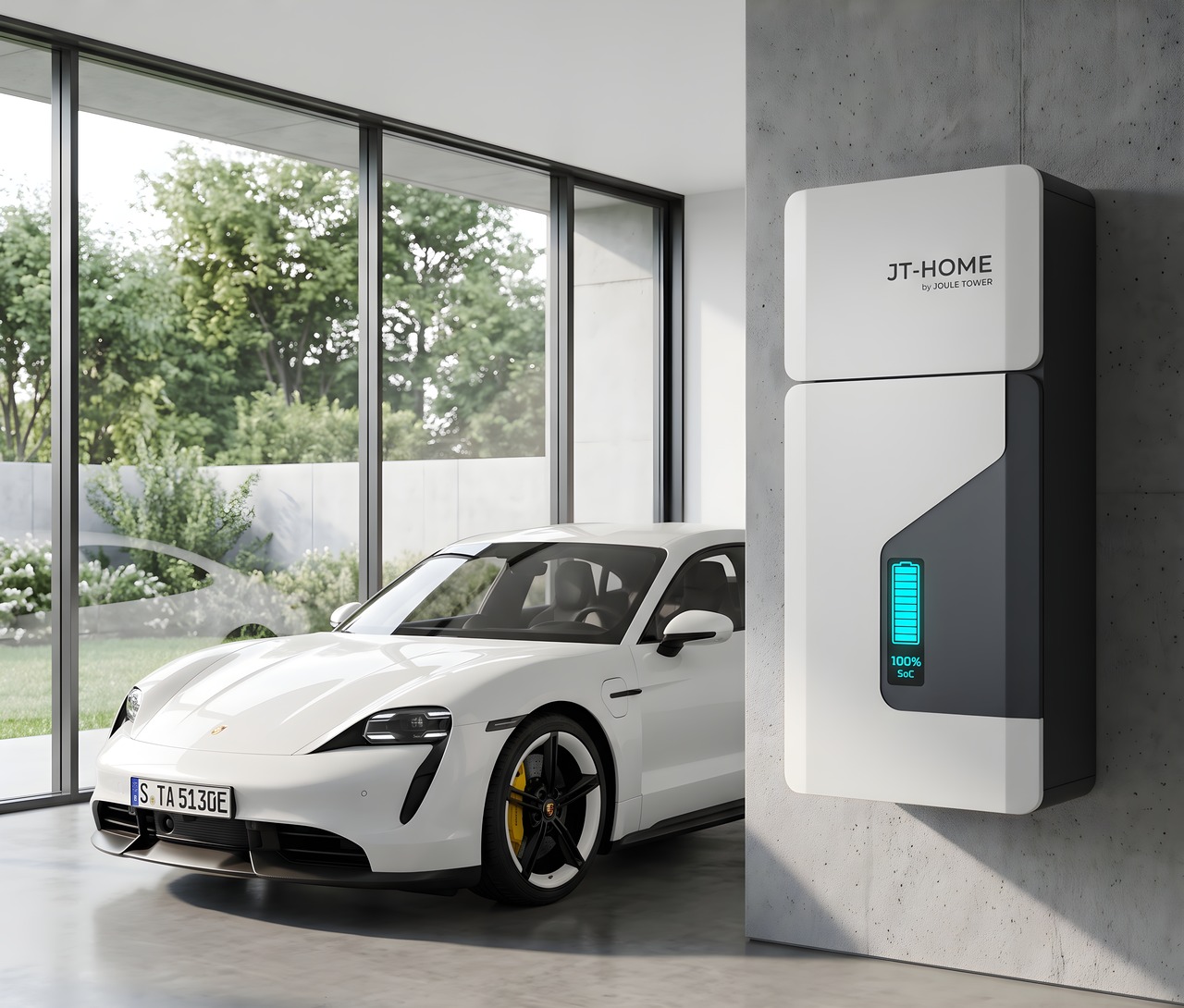

Modular high-voltage lithium storage. Silent replacement for noisy inverters with seamless PM Surya Ghar integration.

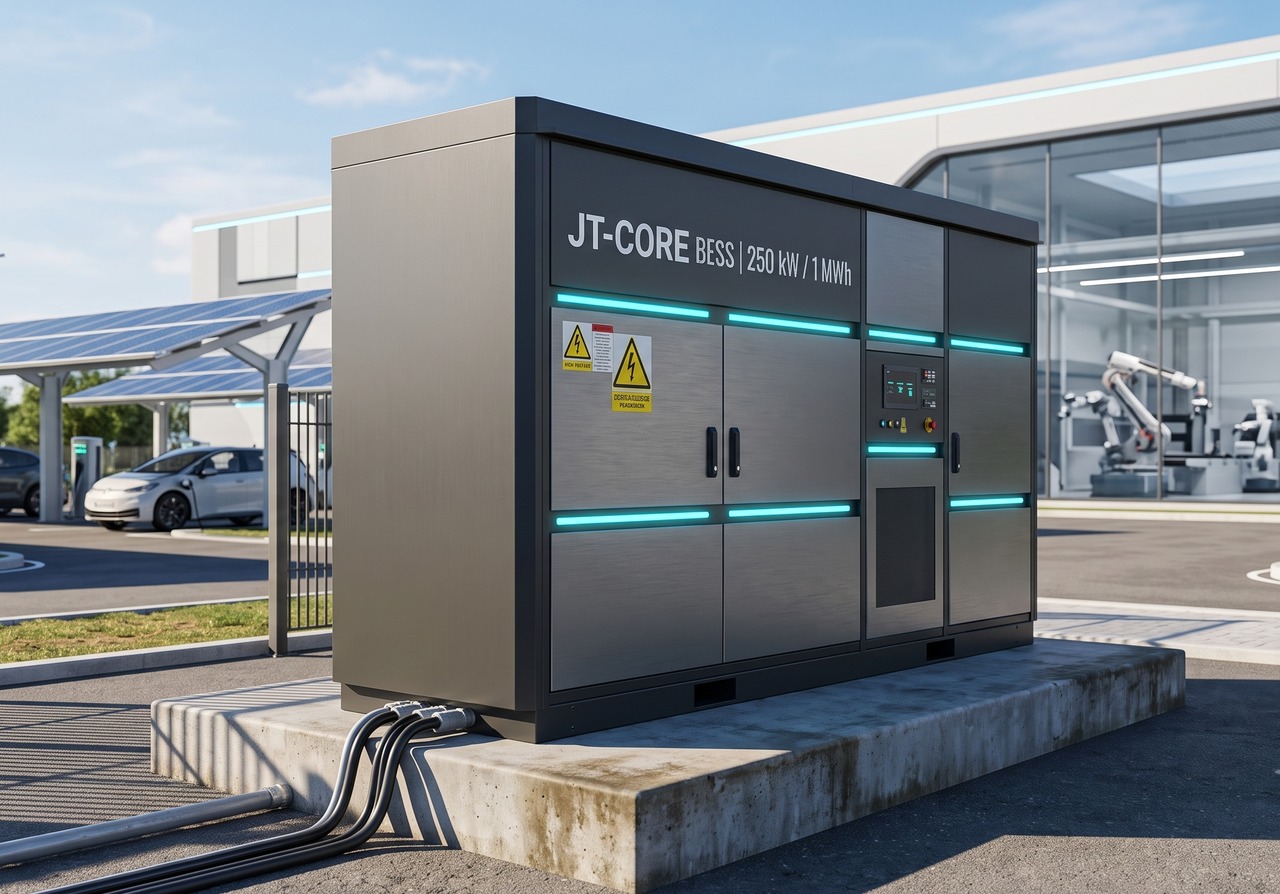

All-in-one liquid-cooled outdoor cabinet. Displaces expensive diesel generators, mitigates demand peaks, and secures factory loads.

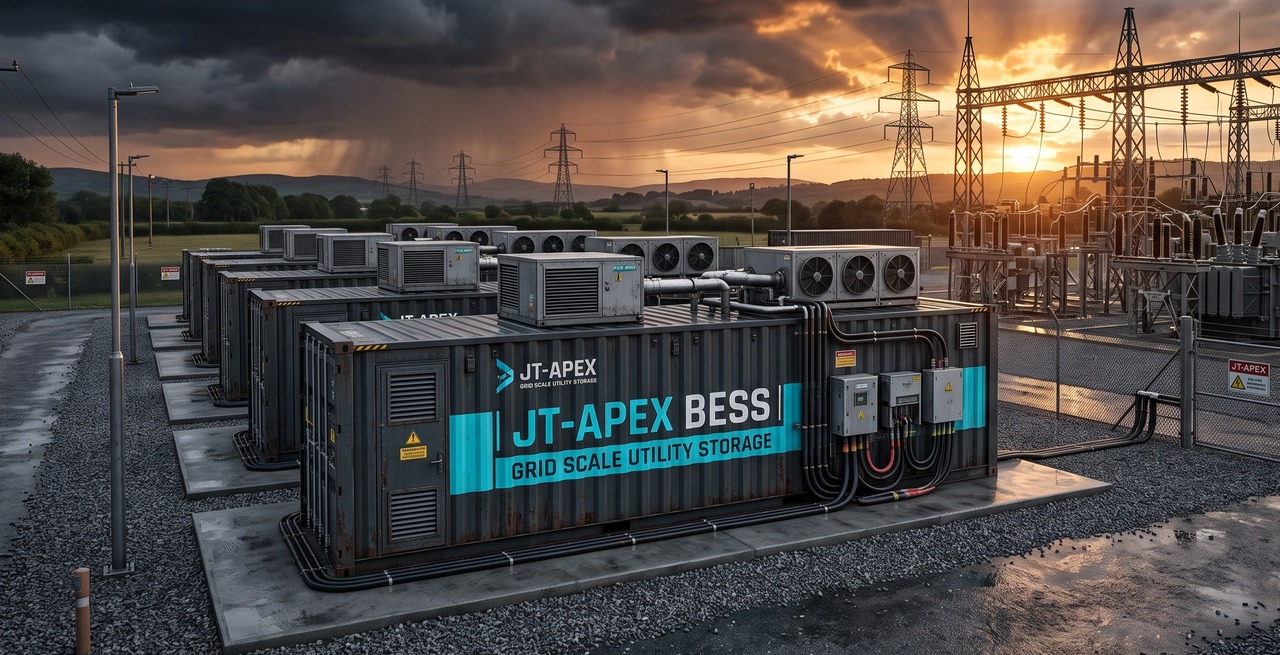

Containerized megawatt-scale BESS for solar parks, substations, and large industrial parks. Multi-hour duration architecture.

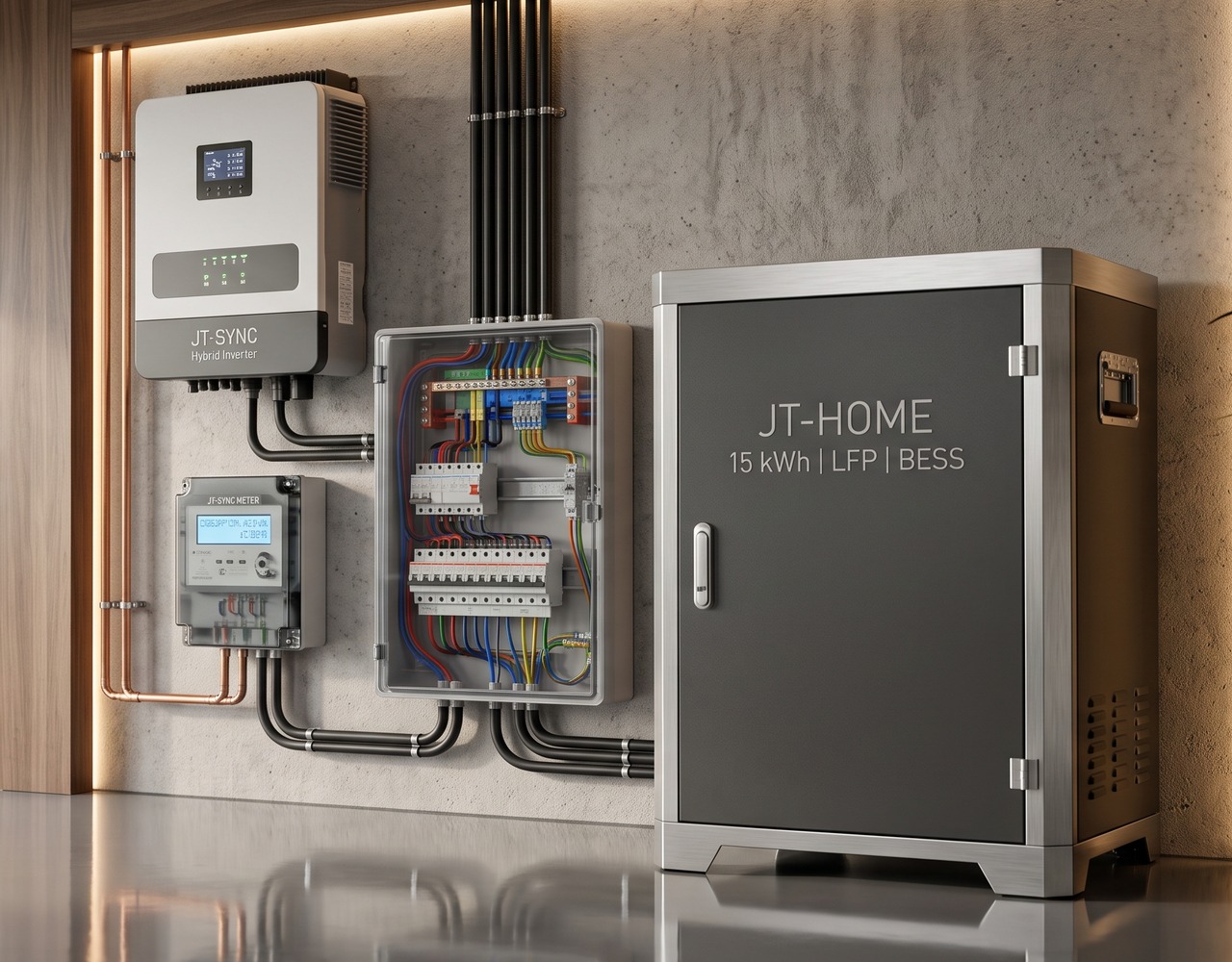

Four-quadrant bidirectional power conditioning system. True microgrid black-start and sub-20ms seamless islanding.
Standard air-cooled BESS suffer up to 40% thermal derating and premature cell degradation in Indian summers. JOULE TOWER integrates full-cabinet liquid cooling with active thermal equilibrium.
High-safety Lithium Iron Phosphate (LiFePO₄) chemistry with ceramic-coated separators. Resilient against thermal excursions with laser-welded copper/aluminum busbars.
Die-cast aluminum liquid-cooling manifolds circulate inhibited glycol-water directly across module baseplates, restricting cell-to-cell ΔT to < 2.5°C across 1C continuous discharge.
Early detection sensors for H₂ and CO off-gassing trigger isolated aerosol suppression before thermal runaway propagation can initiate, reinforced by external water deluge manifolds.
| Parameter | JT-HOME (15 kWh) | JT-CORE 100 (Flagship) | JT-APEX 1000 (Roadmap) | JT-SYNC 100 (PCS) |
|---|---|---|---|---|
| Nominal Energy Capacity | 15.36 kWh | 215 kWh | 1,075 kWh | N/A (PCS Inverter) |
| Continuous Power Output | 7.5 kW AC | 100 kW AC | 500 kW AC | 100 kVA / 100 kW |
| Nominal DC Voltage Range | 256 V – 384 V | 672 V – 864 V | 800 V – 1500 V | 600 V – 900 V DC |
| AC Grid Interconnection | 230V 1-Phase / 415V 3-Phase | 415 V, 3-Phase, 50 Hz | 11 kV / 33 kV Interconnect | 415 V, 3-Phase, 4-Wire |
| Thermal Management | Forced Ambient Air | Closed-Loop Liquid Glycol | Dual-Chiller Closed Liquid | Redundant Forced Air |
| Enclosure Protection | IP65 Wall/Floor Mount | IP55 Outdoor Galvanized | ISO 20ft High-Cube Container | IP54 Indoor / IP55 Outdoor |
| Safety & Compliance | IEC 62619, BIS | IEC 62619, UL 9540A Tested | UL 9540A, CEA Compliant | IEC 62477-1, CEA Grid Code |
Central financial assistance (subsidy up to ₹78,000) under PM Surya Ghar applies specifically to eligible residential grid-connected rooftop solar installations. JOULE TOWER JT-HOME systems pair seamlessly with approved solar plants to store daytime generation for zero-break evening and night power backup.
Compare your current diesel generator running cost (₹28–34/kWh) against off-peak grid-charged battery storage (₹8.50/kWh).
*Preliminary estimate based on standard industrial tariffs and 3.2 kWh/L diesel efficiency. Real site feasibility requires load data logging.
Autonomous EMS telemetry streaming, tariff arbitrage bidding, and multi-tier remote control hierarchy. Built for 20-year asset longevity.
Standard Single Line Diagrams (SLDs) and compliance matrices for electrical consultants and solar EPC contractors.
Standard schematic for C&I installation with dual-source ATS and diesel generator lock.
Cell and module level thermal runaway propagation test evaluation data.
Low-Voltage Ride-Through (LVRT) & Frequency Droop compliance guide for DISCOM engineers.
